What Is Micropile: Types, Common Uses, Advantages, Disadvantages, Installation, and Applications in Construction

Micropiles, also known as minipiles or pin piles, are versatile and innovative foundation support system that plays a significant role in modern construction. These slender, high-strength piles offer a unique set of advantages, making them an ideal choice for various applications.

What Are Micropiles?

Micropiles, or minipiles, are a type of deep foundation element. They are slender, high-strength, and often made of steel, though some variations use reinforced concrete. Micropiles are typically installed using a drilling method and are commonly used to support structures in situations where conventional, larger-diameter piles are impractical.

Micropiles were initially developed in the 1950s in Italy as a response to the need for a foundation system that could address challenging geotechnical conditions and restricted access. Over the years, they have evolved and gained popularity in the construction industry due to their many advantages.

Types of Micropiles

Micropiles come in various types, each designed to cater to specific project requirements and soil conditions. The primary types of micropiles include:

• Battered Micropiles: These are installed at an angle to the vertical axis, typically used to resist horizontal loads and accommodate slope or incline requirements.
• Grouted Micropiles: These micropiles are constructed by drilling a hole, inserting reinforcement, and then grouting the hole. They are commonly used in areas with loose or unconsolidated soils.
• Open-Hole Micropiles: Open-hole micropiles are installed without grouting. They are often used in hard, competent rock where the annulus grouting is not necessary for stability.
• Multiple Corrosion-Protected Micropiles: These micropiles have multiple corrosion protection systems to ensure long-term durability in aggressive environments, such as coastal regions or areas with high groundwater tables.
• Single Corrosion-Protected Micropiles: These micropiles have a single layer of corrosion protection and are suitable for less aggressive environments.
• Single Corrosion-Protected and Grouted Micropiles: Combining corrosion protection and grouting, these micropiles are a versatile option for various soil conditions.
• Drill Displacement Micropiles: These are installed by drilling the soil and compacting it using a displacement tool. They are a cost-effective option for granular soils.

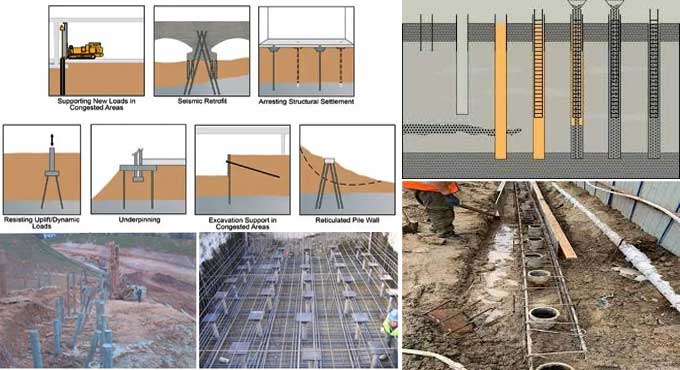

Common Uses of Micropiles

Micropiles are used in a wide range of construction projects due to their versatility and adaptability. Some common applications of micropiles include:

1. Foundation Support

Micropiles are often used to provide foundation support in situations where traditional footings or piles are not feasible. They are particularly useful in areas with limited access and low headroom.

2. Underpinning

Micropiles are employed for underpinning existing structures to restore or enhance their stability. This is crucial for structures with settling or compromised foundations.

3. Slope Stabilization

In regions prone to landslides or erosion, micropiles are used to stabilize slopes, preventing soil movement and protecting structures and infrastructure.

4. Retaining Walls

Micropiles can support and stabilize retaining walls, especially in locations with challenging soil conditions. They help prevent wall settlement or tilting.

5. Bridge and Transportation Projects

Micropiles are commonly used in bridge construction and other transportation projects to support abutments, piers, and other structural elements, particularly when working in tight urban spaces.

6. Tower Foundations

Micropiles are essential in the construction of communication towers, wind turbines, and similar structures that require deep foundation support.

7. Historical Building Preservation

For the preservation and restoration of historic buildings, micropiles can be employed to provide additional structural support while minimizing disruption to the existing structure.

Advantages of Micropiles

Micropiles offer several advantages that make them a preferred choice in many construction scenarios:

1. Versatility

Micropiles are highly versatile and can be used in various soil conditions, including hard rock, soft clay, and granular soils. Their adaptability to different applications makes them an ideal choice.

2. Minimal Environmental Impact

The installation of micropiles typically generates minimal noise and vibration, reducing the environmental impact and disturbance to surrounding areas.

3. Limited Access

In tight urban or restricted-access areas, where larger equipment may not be feasible, micropiles can be easily installed.

4. High Load Capacity

Despite their small diameter, micropiles can carry substantial loads, making them suitable for supporting heavy structures and equipment.

5. Cost-Effective

Micropiles are often more cost-effective than other deep foundation options, as they require less excavation and can be installed more quickly.

6. Minimal Spoils

The drilling process for micropiles generates minimal spoils, reducing disposal costs and environmental impact.

Disadvantages of Micropiles

While micropiles have many advantages, there are some disadvantages to consider:

1. Corrosion Protection

In corrosive environments, corrosion protection is essential for the longevity of micropiles. This can add to the cost and complexity of the project.

2. Limited Load Capacity in Soft Soils

In extremely soft soils, the load capacity of micropiles may be limited, and additional measures may be required.

3. Quality Control

Proper installation and quality control are critical to the success of micropile projects. Inadequate installation can lead to structural issues.

Micropiles vs. Typical Piles

Comparing micropiles to typical piles (such as driven piles or drilled shafts) reveals some key differences:

Size

• Micropiles: Smaller diameter, typically ranging from 3 to 12 inches (75 to 300 mm).
• Typical Piles: Larger diameter, ranging from 12 to 48 inches (300 to 1200 mm) or more.

Load Capacity

• Micropiles: High load capacity relative to their size.
• Typical Piles: Higher load capacity due to their larger diameter.

Installation Method

• Micropiles: Installed using drilling methods, often requiring grouting.
• Typical Piles: Installed using driving or drilling methods, typically without grouting.

Use Cases

• Micropiles: Ideal for limited access, retrofitting, and areas with challenging soil conditions.
• Typical Piles: Suitable for high-load applications, open access sites, and straightforward soil conditions.

How Are Micropiles Installed?

The installation of micropiles involves several key steps:

Drilling: A borehole is drilled to the required depth using specialized drilling equipment. The drilling process can be adjusted to suit the specific soil conditions.

Inserting Reinforcement: Once the borehole is complete, steel reinforcement bars or threaded rods are inserted into the hole.

Grouting: In some cases, cementitious grout is pumped into the borehole to enhance load-bearing capacity and protect against corrosion.

Load Testing: Load tests may be performed to ensure the micropiles meet the required load-bearing capacity.

Trimming: Excess reinforcement may be trimmed, and the top of the micropile is usually capped with a steel plate or a concrete cap.

To get more details, watch the following video tutorial.

Video Source: VinCivil World

Applications in the Field of Construction

Micropiles find extensive use in the construction industry. Here are some specific applications where micropiles play a crucial role:

1. Skyscrapers and High-Rise Buildings

The foundation of tall buildings, especially in urban areas with limited space and challenging soil conditions, often relies on micropiles to support the immense vertical loads.

2. Bridges and Transportation Infrastructure

Micropiles are used to support bridge abutments, piers, and retaining walls, ensuring the structural integrity of transportation infrastructure.

3. Communication Towers

Micropiles provide the foundation support for communication towers, ensuring their stability even in adverse weather conditions.

4. Historical Building Restoration

Preserving and restoring historical buildings often involves using micropiles to add structural support without compromising the historical integrity of the structure.

5. Slope Stabilization

Micropiles help prevent landslides and erosion by stabilizing slopes, which is particularly important in regions prone to such natural events.

6. Underpinning

For existing structures with foundation settlement or instability issues, micropiles can be used for underpinning to restore and enhance structural stability.

In summary, micropiles have become an indispensable foundation support system in the construction industry. Their versatility, adaptability to challenging conditions, and cost-effectiveness make them a preferred choice for various applications. While they come with advantages, it is essential to consider factors like corrosion protection and the need for quality control. When used correctly, micropiles are a reliable and efficient solution for supporting structures in a wide range of construction projects.
