Structural Drawings - Understand how it is utilized in Construction

Structural Drawings - Understand how it is utilized in Construction

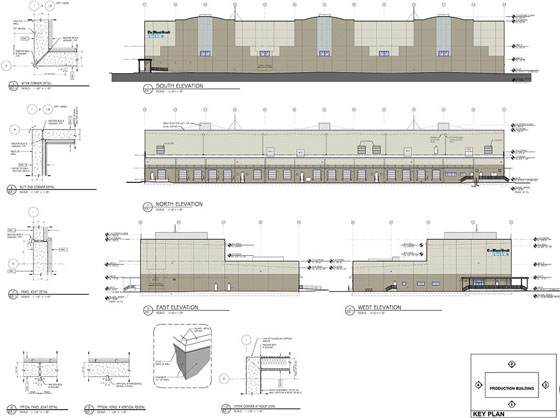

A structural drawing is a crucial and must require process for almost any sort of building constructions. Unless you make layouts in the term of drawings, Engineers, Contractors or Builders can't presume to build a proper building. Structural drawings fundamentally consist of 2D shop drawings, fabrication drawings as well as steel drawings. It functions like a language interaction between contractors and structural Engineers.

For accurate specifications of the proposed building, structural Engineers create handmade drawings which depict the virtual plan of the building which is then passed to Contractors or Builders. After approval draftsmen commence the actual process to be utilized for upcoming building construction. These drawings exhibit vital information about supporting members such as beams, columns and trusses.



At the present time structural drawing process is not merely restricted for building construction but it is extremely popular in tunnels, ships, and aircraft as well as mines construction. This thing enhances its importance in development of virtually any structure. Basically structural drawings are evaluated by skilled experts a structural draftsman who works under Engineer. Engineer offers rough drawings to Draftsman and that rough works converted into CAD drawings by professional Draftsmen.

In past time drawings were designed on the papers and there may be possibilities of error. To minimize these types of errors structural industry has launched different software for accurate outputs. Whole the process takes place on computer under qualified professionals so quality output is assured. To prevent reconstruction, professional organizations have introduced international codes and standards which should be followed by all organizations.

After getting a great deal of innovation for drawing process, experts have launched 2D and 3D techniques for versatile environment. Utilization of 2D and 3D technique in structural drawing minimized the complexity of project. Numerous tools for 3D drawings allow draftsmen to create accurate 3D elements that belong to the related structure. It enables viewing all objects evidently as it facilitates moving and rotating terms. Once whole the process is accomplished the installed software counts bill of material and enable specifying estimation cost.
